品牌:Cambium Networks

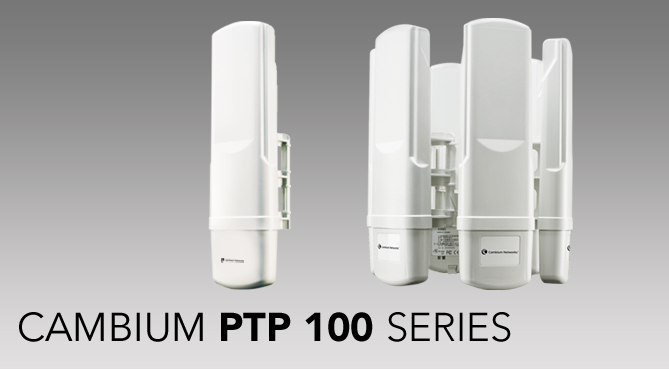

 This series of bridges make use of Cambium's proprietary Point-to-Multipoint Wireless Broadband platform modulation scheme to deliver broadband connectivity across distances of up to 35 miles (56 kilometers). The PTP 100 Series is available in a broad range of frequencies (2.4, 5.1, 5.2, 5.4 and 5.8 GHz) and are uniquely suited for delivering consistent throughput in Line-of-Sight (LoS) configurations.

The PTP 100 Series of wireless Ethernet bridges offer enterprises and telecom operators a reliable and affordable entry point for providing wireless broadband connectivity to the locations that need it most. A simple license key upgrade system enables operators to add more throughput as their network requires it from as low as 2 Mbps in some regions of the world up to 14 Mbps. These radios are ideal for line-of-sight conditions. Not only are they highly reliable, weather resistant, compact and rugged in design, the PTP 100 radios produce consistent data rates in the face of interference. Ideal applications for these bridges are rural or remote locations, campus applications, temporary and emergency systems, video surveillance, telemedicine, e-learning and banking.

These solutions support both over-the-air DES (Data Encryption Standard) encryption and are also available with AES (Advanced Encryption Standard) capabilities, which provide 128-bit encryption, to ensure secure data delivery and exceptional reliability.

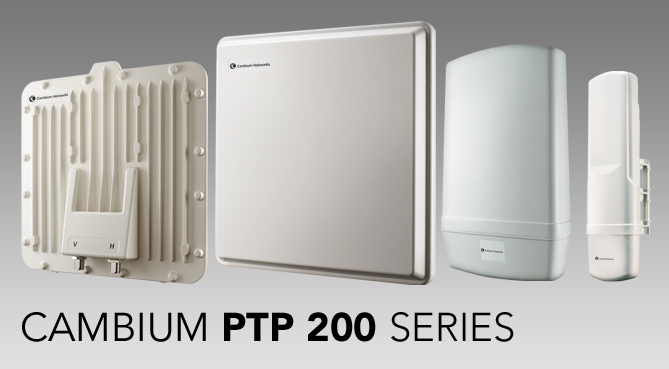

Designed to securely transport data, voice and video in both near line-of-sight (nLOS) and line-of-sight (LOS) environments, the PTP 200 Series offers affordable, accelerated throughput at a time when operators are challenged with increasing bandwidth capacities to support additional applications, subscribers and users. With solutions including a dual-band radio with outstanding small packet performance, a 5 GHz solution with exceptional long distance capabilities, and a 4.9 GHz system for public safety, the PTP 200 Series provides many options for budget restricted operators while meeting their unique requirements for longer range, more bandwidth and band specific utilization.. Their ruggedness, field durability and MTBF are recognized throughout the industry and contribute to their exceptional performance. Their low cost of ownership makes a PTP 200 solution affordable for even the most restricted budgets.

Applications:

  • Lease line replacement
  • Building to building and remote locations
  • Voice and video backhaul
  • Video surveillance



PTP 250

Wireless Service Providers (WISPs), Administrative Government entities, and enterprises can leverage the feature-rich performance of the PTP 250 especially for VoIP applications requiring additional capacity and an affordable cost per megabit.

  • Dual-band flexibility between 5.4 and 5.8 Ghz
  • Best in class small packet performance delivering up to 234,000 packets-per second (pps)
  • Low TCO
  • SNMP v2c enables fault monitoring
  • Highly ruggedized and phenomenal MTBF metrics

PTP 230

For small to medium organizations that want an affordable, medium-throughput solution for paths with minimal interference and minor obstructions, the PTP 230 is a perfect point to point solution.

  • GPS Synchronization
  • Based on popular PMP 430 platform
  • Fast installation and ROI Up to 80 miles (129 km) with a reflector
  • Up to 18 miles (29 km) with a LENS
  • Up to 4.5 miles (7 km) with integrated antenna

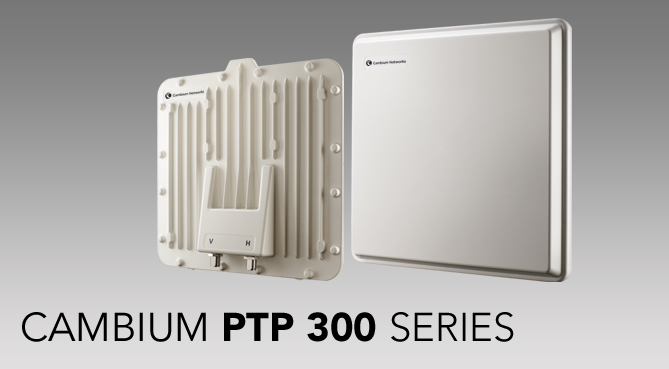

IMPORTANT CHANGE EFFECTIVE ARPIL 18, 2012. Please note that we have migrated our PTP 300 Series Point-to-Point wireless Ethernet Bridges to our PTP 500 Series wireless Ethernet Bridges. By consolidating PTP 300 into our 500 Series, we improve many operational efficiencies which result in simplified system ordering and upgrades for our customers. With this consolidation, the PTP 300's 25 Mbps system can leverage the throughput scalability of our PTP 500 Series. You will have the flexibility and option to upgrade your base system to 52 Mbps or 105 Mbps should you require additional capacity down the road. Additionally, PTP 300 and PTP 500 systems will be able to transmit and receive in mixed links. Click here for more info on the new consolidated PTP 500 Series.





Choose the PTP 500 Series to deliver high-speed, robust wireless backhaul. Connect buildings in a campus setting. Extend video surveillance beyond the wired infrastructure. Support bandwidth-intensive applications such as Voice-over-IP, telemedicine, IP gaming and multimedia. The PTP 500 bridges can deliver up to 99.999% availability in virtually any environment, including non-line-of-sight, long-distance line-of-sight, over water or open terrain, even through extreme weather conditions.

With a 25 Mbps base system and outdoor units in both Connectorized and Integrated models, our PTP 500 Series 5.4 and 5.8 GHz bands offer easy license key upgrades with data rates up to 105 Mbps. throughput.

More Range to Anywhere
PTP 500 Series links have class-leading sensitivity and power output, which enable the links to go farther than comparable systems � up to 155 miles (250 km).

More Channels
Cambium Networks combines MIMO, i-OFDM and our advanced signal-processing algorithms to create four simultaneous channels between pairs of transceivers at each end of the link, without losing spectrum efficiency.

Choice and Flexibility
PTP 500 Series bridges offer operators flexibility and options to add capacity when your network needs more and include:

  • All units ship with a 25 Mbps base system.
  • Single step license upgrades are available from 25 to 52 Mbps or 25 to 105 Mbps
  • Stepped upgrades are available for 25 to 52 Mbps and 52 to 105 Mbps
  • Supports 5, 10 and 15 MHz channel sizes
  • A single T1/E1 port capability enabled through the PTP Power Indoor Unit (PIDU Plus) via simple splitter or Y cable.
  • Extends Intelligent DFS (i-DFS) to regions where radar detection is enabled
  • Each TDD-synchronized PTP 500 link can use a PTP-SYNC unit to provide an accurate timing reference. All models of the PTP 500 support the PTP-SYNC unit.

Integrated Lightning Protection
No external lightning protection device is needed at the top of the tower adjacent to the radio. An external PTP Lightning Protection Unit (PTP-LPU) is required at the cable entrance point leading to the indoor network equipment.

Added Security
Support for HTTPS/TLS, Remote Authentication Dial In User Service (RADIUS), and syslog.

PTP LINKPlanner
This tool enables you to to plan for single or multiple links simultaneously, using Google Earth to provide a comprehensive overview of the entire network.

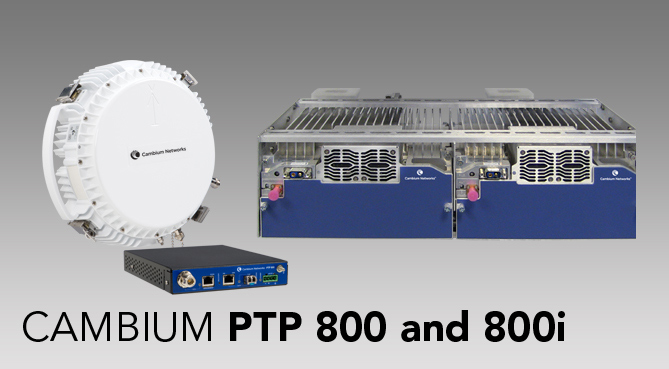

Today’s converged multi-service networks need high capacity, availability, reliability and security with low latency and true affordability. Our Cambium PTP 800 Licensed Ethernet portfolio has been designed to ensure that today’s evolving networks can benefit from the highest level of IP-optimized microwave solutions available in the market. For public safety agencies, government entities, enterprises and service providers who demand licensed exclusivity, high-bandwidth, scalability and affordability, the PTP 800 Series can meet all of your network and bandwidth requirements.

Because our portfolio supports both Split Mount and All-Indoor architectures, network operators can choose a solution that best accommodates their unique business needs. Whether providing connectivity to long distance locations, backhauling video or providing last-mile access, the PTP 800 and PTP 800i All-Indoor solutions have the capabilities and features to meet today’s IP requirements and tomorrow’s Next Generation Network needs.

Operating in the 6 to 38 GHz RF bands* at up to 368 Mbps throughput (full duplex) and with user-configured channel bandwidths from 7 to 56 MHz, the Cambium PTP 800 Series offers operators a highly reliable licensed band solution. With upgradeable capacity from 10 Mbps to full capacity via a software key, the systems offer exceptional cost efficiency and scalability. The PTP 800i All-Indoor system delivers up to 236 Mbps (full duplex) over configurable channel bandwidths from 10 to 40 MHz. In addition, Cambium offers comprehensive FCC licensing coordination services through our partnership with Comsearch.

Key features include:
1+1
Includes 1+1 Hot Standby links, 2+0 redundant links in a ring or mesh configuration plus non-redundant links. Hot Standby links are designed to provide full redundancy in the event of a single Compact Modem Unit (CMU) or an Outdoor Unit (ODU) failure at one or both ends of the link.

Effective system design
With the smallest Compact Modem Unit (CMU) in the industry, the small form factor design helps remove customer dependency on rack space.

Capacity as you grow throughput
Flexible stepping options allow operators to purchase a standard 10 Mbps factory set cap and then increase capacity as needed based on throughput demands ensuring exceptional scalability.

Asymmetric control
Where users download more information than they upload, operators can assign different throughput capacities for the up and down links.

No surprises link planning
Optimize licensed link performance prior to purchase and gain a complete view of your network via Google Earth with the PTP LINKPlanner. This tool also provides a complete Bill of Materials (BOM) that lists all equipment required for the deployment simplifying the order process and providing important link information needed for FCC and other regulatory bodies.

Security Options
FIPS-197 128/256-bit AES encryption
FIPS 140-2

Low Latency
< 115us @ full capacity with 64 bytes

Flexible network management
Remote management via web browser. Optional Cambium Wireless Manager or other third party tools are available for management purposes.

"Zero-Downtime" Adaptive Modulation
Automatic shifting of modulation and/or coding rate as radio path conditions change enable transmitters and receivers to negotiate highest mutually sustainable data rate.

*Local regulatory requirements should be confirmed prior to system purchase.

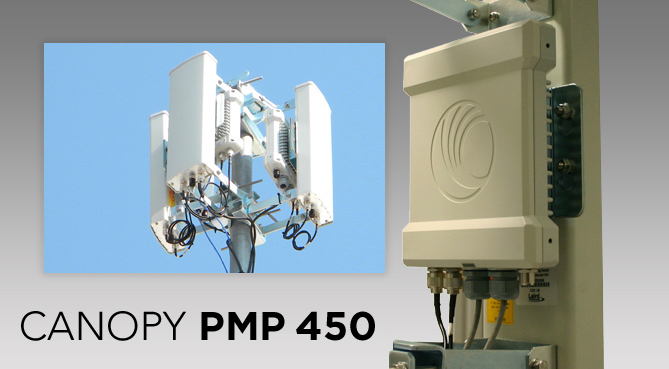

The Canopy PMP 450 Access Point (AP) can provide more than 90 Mbps throughput and will be interoperable with Canopy 430 series and 100 Series Subscriber Modules (SM) via a separately purchased downloadable license key. Service providers with an installed base of 100 series SMs will be able to add new high-throughput 450 series SMs to the network for business and residential access networks to enhance overall capacity, allowing more users and/or higher rate plans.

Cambium Networks provides exceptional wireless broadband connectivity solutions. With more than 3 million modules deployed in thousands of networks around the world, Cambium solutions are proven to provide cost effective, reliable data, voice and video connectivity.

  • Dramatically increases overall system capacity
  • No wholesale change-out of SMs required to achieve benefits
  • Intelligently adapts as OFDM loading increases to maximize performance
  • OFDM MIMO data rates of up to 90 Mbps peak throughput
  • MIMO subscribers to maximize network capacity
  • Simultaneously talks to both FSK & OFDM SMs using Canopy MAC protocol (future)
